Insulation tester for ESD and signal cable testing

Product Documents

This product has now been discontinued, please view the MIT400/2 alternative product.

  • 10 V and 100 V ESD testing
  • 25 V and 50 V signal cable insulation testing
  • 250 V and 500 V Insulation testing up to 50 GΩ (500 V)
  • Continuity testing at 200 mA or 20 mA from 0.01 Ω to 999 kΩ
  • DC and TRMS AC voltage measurement
  • Large backlit display
  • Combined analogue and dual digital readout
  • Weatherproof to IP54
  • Supplied with AA alkaline

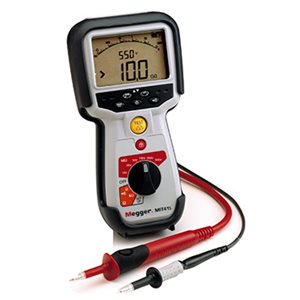

The Megger MIT415 insulation and continuity tester is designed for electrical testing by utilities, industrial, commercial and domestic electricians. The wide range of test voltages makes the MIT415 series ideal for the engineer or technician involved with combined applications of both communications circuits and power circuits such as would be found in elevator service/repair and routine maintenance. The low test voltage insulation ranges also makes the MIT415 ideal for ESD testing.

The MIT415 replaces the well-established BMM2000ESD insulation tester, gives greater functionality with simplified operation, greater application range and an ergonomically designed case.

Technical Documents
Technical guide
Use of fused test leads
