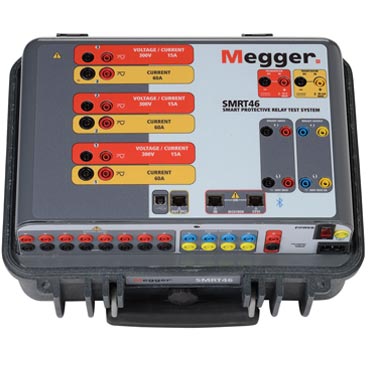

SMRT46

Multi-phase relay tester

  • Small, rugged, lightweight and powerful
  • Intuitive manual operation with Smart Touch View Interface
  • High current, high power output
  • (60 Amps/300 VA rms) per phase
  • 4 Voltage channels, 3 Current channels, with convertible voltage channels provides 1 voltage and 6 currents
  • Dynamic, Transient and GPS Satellite Synchronized End-to-End Testing Capability
  • IEC 61850 Testing Capability

The SMRT46 is a multipurpose, light-weight, field portable test set capable of testing a wide variety of electro-mechanical, solid-state and microprocessor-based protective relays, motor overload relays and similar protective devices.

The SMRT46 test system has the ability to be manually controlled with Megger’s Smart Touch View Interface™ (STVI). The STVI, with its large, full color, high resolution, TFT LCD touch screen allows the user to perform manual, steady-state and dynamic testing quickly and easily using the manual test screen, as well as using built-in preset test routines for most popular relays (see STVI datasheet for details).

For full automatic testing the SMRT46 may be controlled by Megger Relay Testing Management Software (RTMS). RTMS is a Microsoft® Windows® XP® Service Pack 3/Vista™/7/8/10 compatible software program designed to manage all aspects of protective relay testing using the new Megger SMRT33, (see RTMS datasheet for details).

SMRT
install_powerdb_11.2_28MAY19

Released: May, 2019

Note: The downloaded file will be named "Install_powerdb_XXX.zip"

install_powerdb_11-2_DRIVER_UPDATE_28MAY19.zip
670.3 MB | 05/06/19
SMRT Firmware 4.840
SMRT_Firmware_4-840-ldr.zip
455.8 KB | 04/06/19
