Watthour meter test and calibration system

  • True three-phase and single-phase testing capabilities
  • Fully automatic operation
  • For testing socket-mounted meters as well as panel-mounted and bottom-connected meters
  • 32-bit operating software - use with Windows 95/98/2000/ME/NT 4.0 and XP
  • State-of-the-art optical sensing
  • Built-in, automatic calibration routine
  • Powerful, automated meter test socket
  • Now tests watthour meters with installed Turtle® made by Hunt Technologies® - there is no need to take the Turtle® out of operation

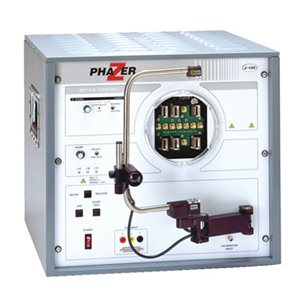

The PHAZER series of watthour meter test and calibration systems are true three-phase, fully automatic systems capable of testing virtually all types of ANSI socket-mounted and bottom-connected single- and three-phase (three and four wire) electricity meters. The PHAZER series consists of specific models for testing socket-mounted meters and specific models for testing panel-mounted and bottom-connected meters.

Major components of each PHAZER model include a built-in three-phase reference standard, remote optical sensor/control system (ROC), and programmable voltage and current sources.

A computer is needed as a system controller in order to operate this system and the 32-bit software is Microsoft Windows based, and allows the operator to perform all standard tests, develop meter test plans, and calibrate the system to an external reference standard. Default test plans for each major meter format are provided within the software. Meter information and test results are stored in a database for search and reporting capabilities, and are also available in ASCII format for easy importing into other application software.

In addition, the PHAZER easily tests any meter with an installed Turtle® made by Hunt Technologies®, therefore, there is no need to take the Turtle® out of operation.
